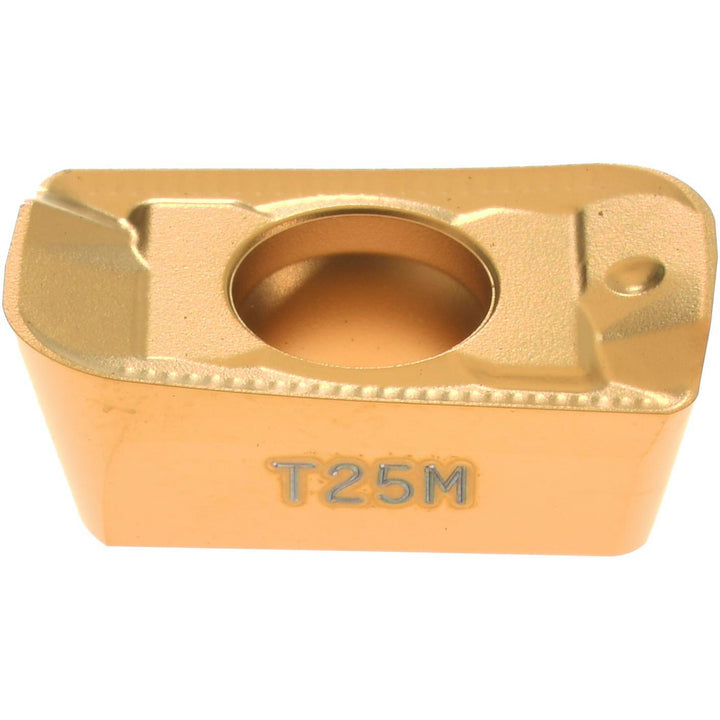

APKX160430R-ME12 Solid Carbide Insert, Grade T25M, TiCN - Seco 74034331

Seco

APKX160430R-ME12 Solid Carbide Insert, Grade T25M, TiCN - Seco 74034331

MFR# 74034331ISO/ANSI# APKX160430R-ME12Cat# APKX160430R-ME12Series APKX-16

$31.92List $40.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74034331 is a APKX160430R-ME12 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeAPKX160430R-ME12
Chip breakerME12
Coating finishTiCN
Coating processCVD
Corner radius0.1181
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6598
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle0.3717
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160430
Insert styleAPKX
Iso codeAPKX160430R-ME12
Length0.6598
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKX160430R-ME12
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle24
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2232
Thickness range0.2200 to 0.2350
Width0.3717
