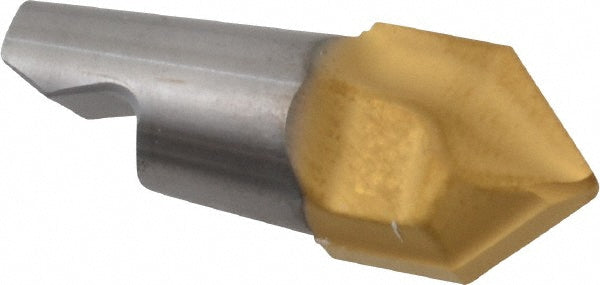

Carbide Insert, Grade T60M, TiAlN - Seco 74034542

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74034542

MFR# 74034542Series MM12

$122.06
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74034542 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerM04
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2600
Cutting diameter0.4720
Cutting width0.4720in
Extension from holder in0.5760
Functional length0.5760
Included angle degree90
Insert handRight Hand
Insert size0.472-C90
Lead angle45
Length of cut0.2220in
Manufacturers catalog number74034542
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.2220
Milling tip full descriptionMM12-0.472-C90-M04
Milling tip styleMM12
Milling tip typeChamfer
Number of flutes2
Overall length0.5760in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
