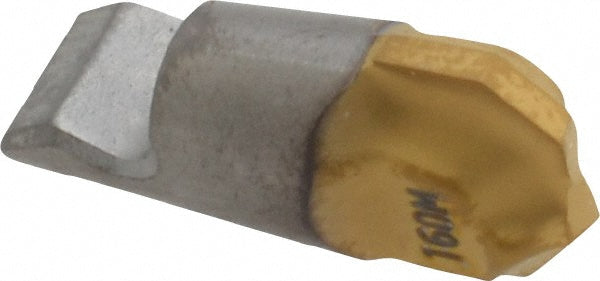

Carbide Insert, Grade T60M, TiAlN - Seco 74034543

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74034543

MFR# 74034543Series MM08

$85.56
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74034543 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerE03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1380
Cutting diameter0.1520
Cutting width0.3150in
Extension from holder in0.2640
Functional length0.2640
Included angle degree90
Insert handRight Hand
Insert size0.315-45.08
Lead angle45
Length of cut0.0830in
Manufacturers catalog number74034543
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.0830
Milling tip full descriptionMM08-0.315-45.08-E03
Milling tip styleMM08
Milling tip typeChamfer
Number of flutes2
Overall length0.2640in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
