Carbide Insert, Grade T60M, TiAlN - Seco 74034546

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74034546

MFR# 74034546Series MM08

$85.56
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

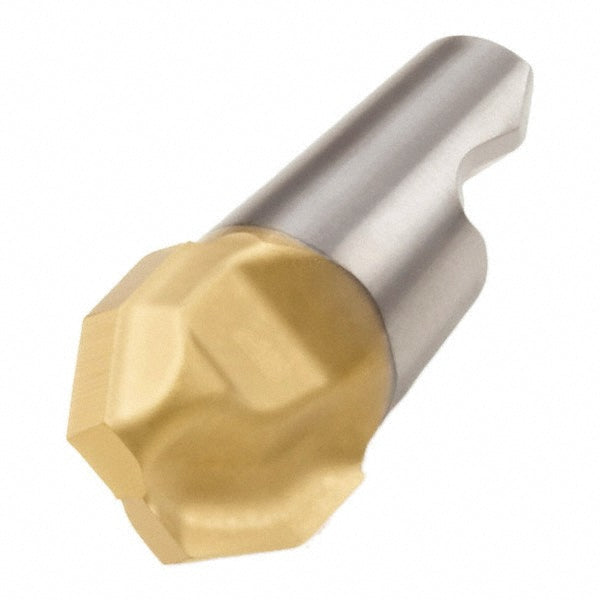

The Seco 74034546 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle30degree
ChipbreakerE03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1140
Cutting diameter0.1650
Cutting width0.3150in
Extension from holder in0.3020
Functional length0.3020
Included angle degree120
Insert handRight Hand
Insert size0.315-60.13
Lead angle60
Length of cut0.1300in
Manufacturers catalog number74034546
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.1300
Milling tip full descriptionMM08-0.315-60.13-E03
Milling tip styleMM08
Milling tip typeChamfer
Number of flutes2
Overall length0.3020in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
