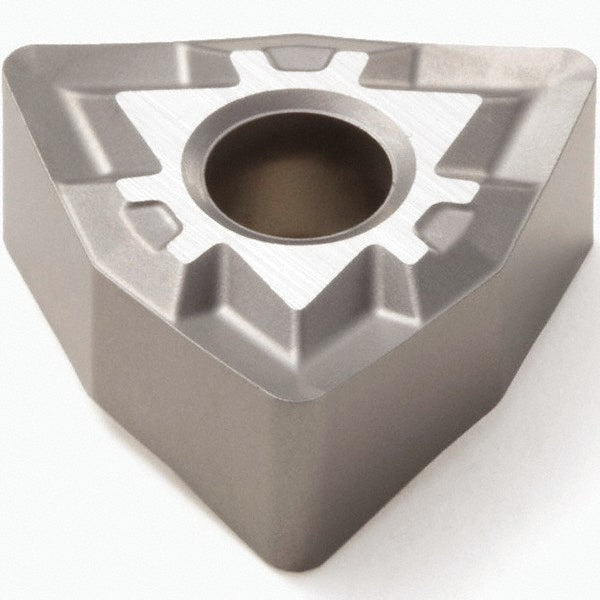

WNMG060404-MF1 Carbide Insert, Grade 890 - Seco 74037194
MFR# 74037194ISO/ANSI# WNMP331-MF1Series WNMP-MF1
$11.62List $14.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade890
MaterialCarbide
Description
The Seco 74037194 is a WNMG060404-MF1 carbide indexable insert, grade 890. Suited for superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMP331-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMP
Insert thickness in3/16
Iso codeWNMG060404-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number74037194
Manufacturer grade890
Material gradeS10; S20
Maximum depth of cut0.2480
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
