Seco
WNMG060408-MF1 Carbide Insert, Grade 890 - Seco 74037195
MFR# 74037195ISO/ANSI# WNMP332-MF1Series WNMP-MF1
$12.81List $16.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade890
MaterialCarbide
Description

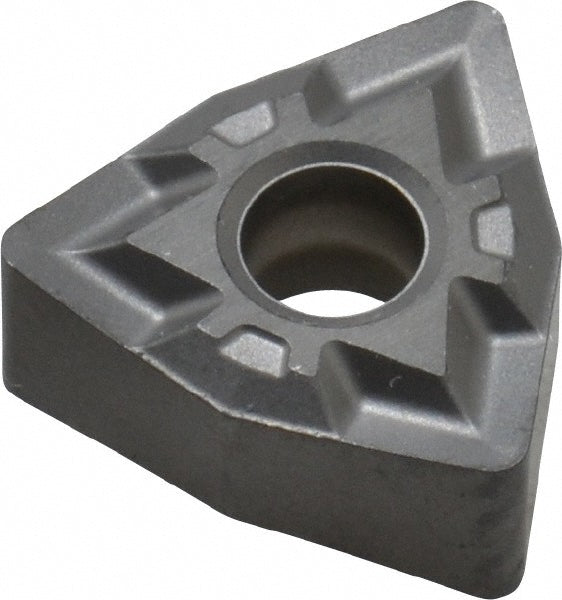

The Seco 74037195 is a WNMG060408-MF1 carbide indexable insert, grade 890. Suited for superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMP332-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMP
Insert thickness in3/16
Iso codeWNMG060408-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number74037195
Manufacturer grade890
Material gradeS10; S20
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
