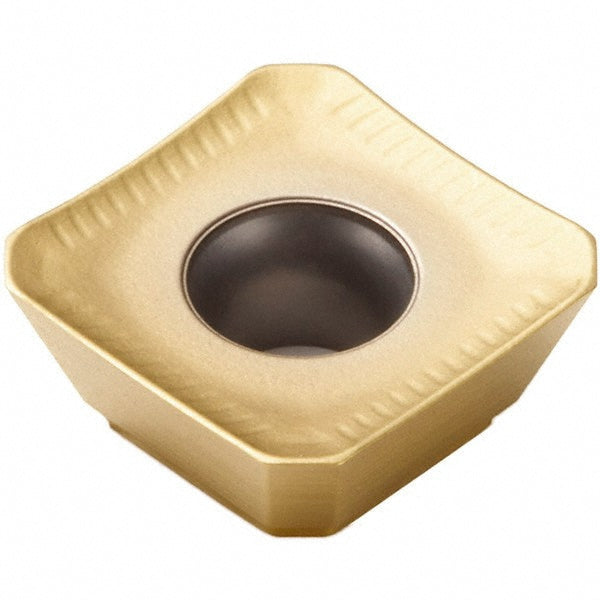

SEEX09T3AFTN-ME07 Solid Carbide Insert, Grade T25M, TiCN - Seco 74037297

Seco

SEEX09T3AFTN-ME07 Solid Carbide Insert, Grade T25M, TiCN - Seco 74037297

MFR# 74037297ISO/ANSI# SEEX09T3AFTN-ME07Cat# SEEX09T3AFTN-ME07Series SEEX-09

$19.87List $25.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74037297 is a SEEX09T3AFTN-ME07 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeSEEX09T3AFTN-ME07
Chip breakerME07
Coating finishTiCN
Coating processCVD
Corner radius0.0118
Cutter series compatibilityR217.53-09; R220.53-09
Cutting edge effective length0.3748
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEEX
Iso codeSEEX09T3AFTN-ME07
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSEEX09T3AFTN-ME07
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges4
RakePositive
Rake angle22
Relief angle20
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
