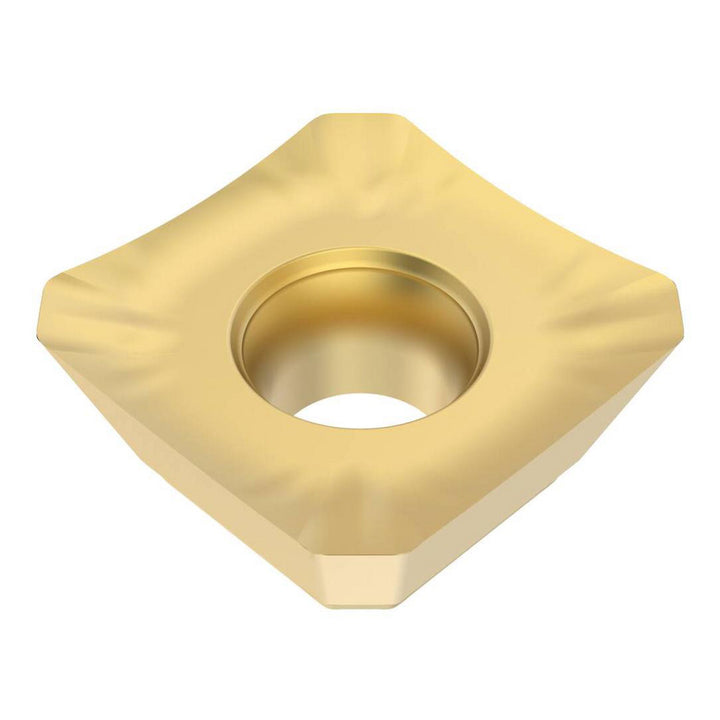

SEEX09T3AFN-E04 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74037300

Seco

SEEX09T3AFN-E04 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74037300

MFR# 74037300ISO/ANSI# SEEX09T3AFN-E04Cat# SEEX09T3AFN-E04Series SEEX-09

$18.02List $23.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeF15M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 74037300 is a SEEX09T3AFN-E04 solid carbide indexable insert, grade F15M, TiAlN coated. Suited for hard material.

Specifications

Ansi codeSEEX09T3AFN-E04
Chip breakerE04
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutter series compatibilityR217.53-09; R220.53-09
Cutting edge effective length0.3748
Cutting edge styleHoned
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEEX
Iso codeSEEX09T3AFN-E04
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSEEX09T3AFN-E04
Manufacturer gradeF15M
Material applicationHard Material
Material gradeFine Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakePositive
Rake angle25
Relief angle20.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
