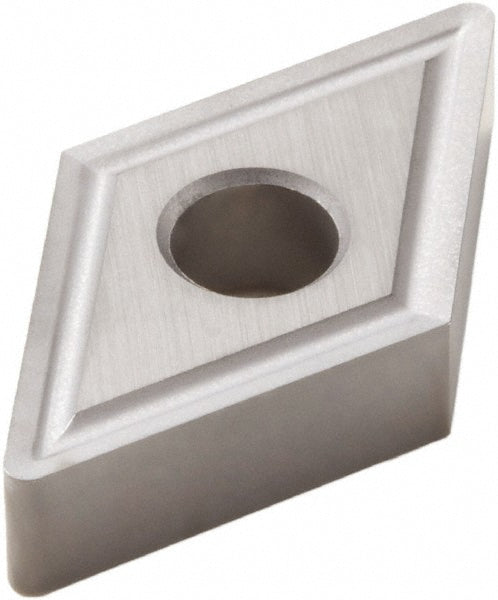

DNMG150408-M1 Carbide Insert, Grade 883 - Seco 74040571

Seco

DNMG150408-M1 Carbide Insert, Grade 883 - Seco 74040571

MFR# 74040571ISO/ANSI# DNMP150408Series DNMP-M1

$16.25List $20.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade883
MaterialCarbide

Description

The Seco 74040571 is a DNMG150408-M1 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Ansi insert codeDNMP432
Ansi size code432
Chip breakerM1
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle55
Industry standard numberDNMP432-M1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMP
Insert thickness in3/16
Iso codeDNMG150408-M1
Iso insert codeDNMP150408
Iso size code150408
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number74040571
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
