Seco

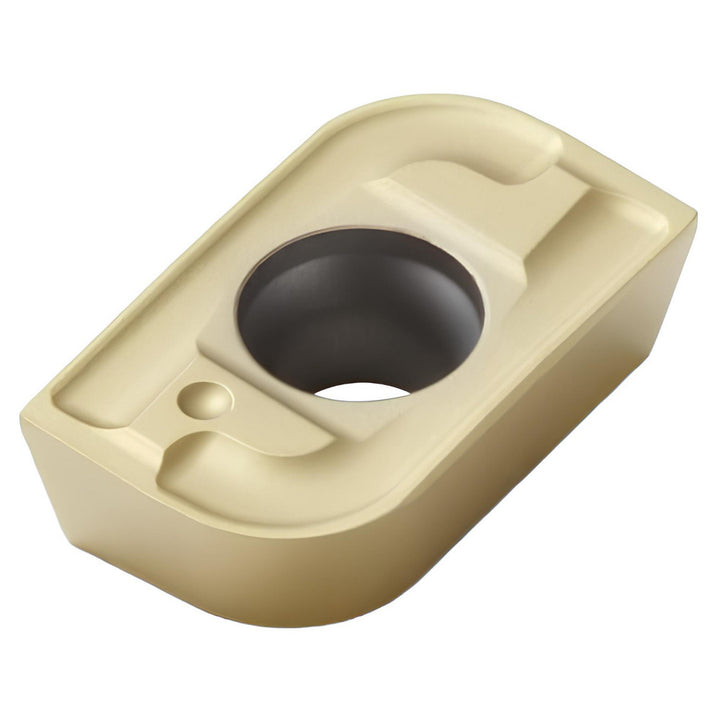

APFT1604635R-M13 Solid Carbide Insert, Grade T25M, TiCN - Seco 74043723
MFR# 74043723ISO/ANSI# APFT1604635R-M13Cat# APFT1604635R-M13Series APFT-16
$41.56List $52.38
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74043723 is a APFT1604635R-M13 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeAPFT1604635R-M13
Chip breakerM13
Coating finishTiCN
Coating processCVD
Corner radius in1/4
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6693
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90.83
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604635
Insert styleAPFT
Iso codeAPFT1604635R-M13
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberAPFT1604635R-M13
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle15
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
