Seco

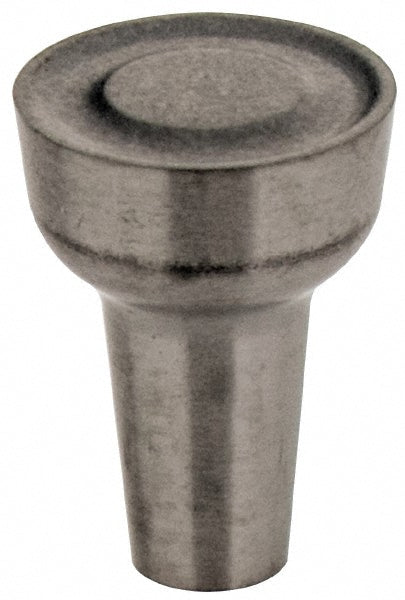

RCGS4.76-46 Carbide Insert, Grade 883 - Seco 74043728
MFR# 74043728ISO/ANSI# RCGS4.76-46Series T-Lock
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
Grade883
MaterialCarbide
Description
The Seco 74043728 is a RCGS4.76-46 carbide indexable insert, grade 883. Suited for non-ferrous metal, superalloys & titanium, hard material.
Specifications
ApplicationsProfiling; Turning
Chipbreaker46
Coating processUncoated
Corner radius0.0937
Hole diameter0.0000
Included angle360
Inscribed circle in3/16
Insert handNeutral
Insert height0.2500
Insert holding methodClamp; Pin
Insert length in3/16
Insert materialCarbide
Insert size code1.5F
Insert styleRCGS
Iso codeRCGS4.76-46
Manufacturer grade883
Material gradeN10; N20; N30; S10; S20; S30; H30; H40
Maximum depth of cut0.0937
Msc manufacturer numberRCGS1.5F-46
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Secondary workpiece materialUniversal
ShapeRound
Side length0.1874
StandardsRCGS1.5F-46; RCGS4.76-46
Thickness in1/4
Width in3/16
