Seco

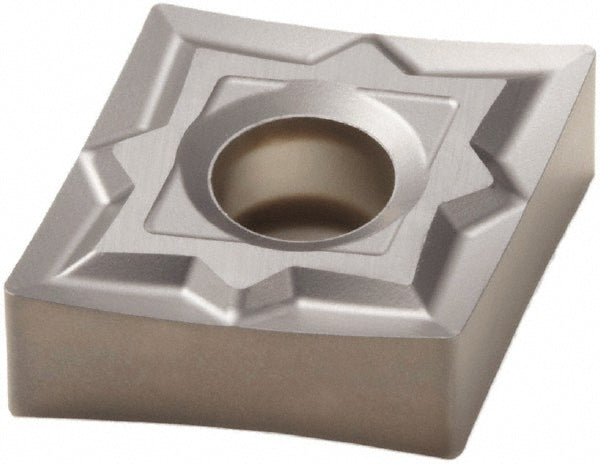

CNMG120404-MF1 Carbide Insert, Grade 890 - Seco 74050197
MFR# 74050197ISO/ANSI# CNMP431-MF1Series CNMP-MF1
$17.32List $21.82
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
Grade890
MaterialCarbide
Description
The Seco 74050197 is a CNMG120404-MF1 carbide indexable insert, grade 890. Suited for superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMP431-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMP
Insert thickness in3/16
Iso codeCNMG120404-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number74050197
Manufacturer grade890
Material gradeS10; S20
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
