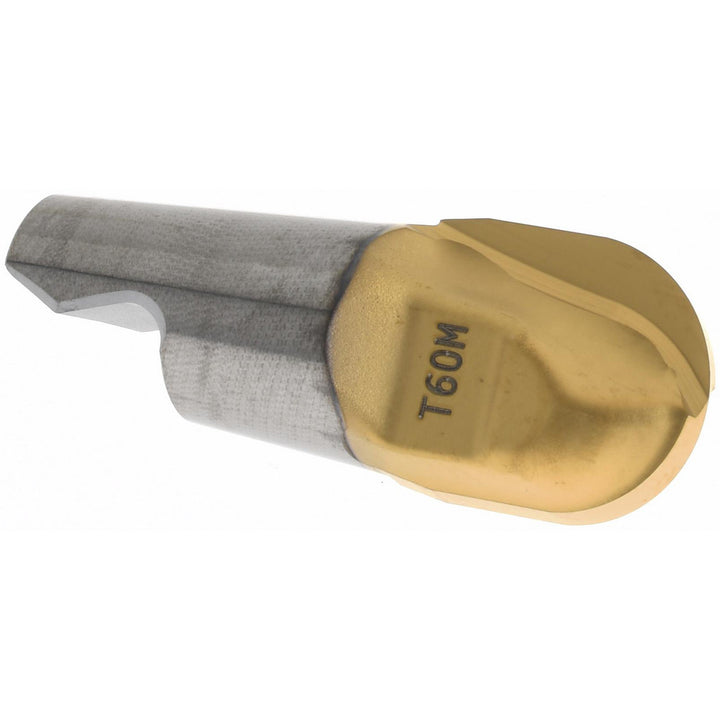

Carbide Insert, Grade T60M, TiAlN - Seco 74052645

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74052645

MFR# 74052645Series MM10

$127.51
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74052645 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerM04
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1880
Cutting width0.375
Extension from holder in0.4620
Functional length0.4620
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.375-B90P
Lead angle90
Length of cut0.3430
Manufacturers catalog number74052645
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.3430
Milling tip full descriptionMM10-0.375-B90P-M04
Milling tip styleMM10
Milling tip typeProfile
Number of flutes2
Overall length0.462
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
