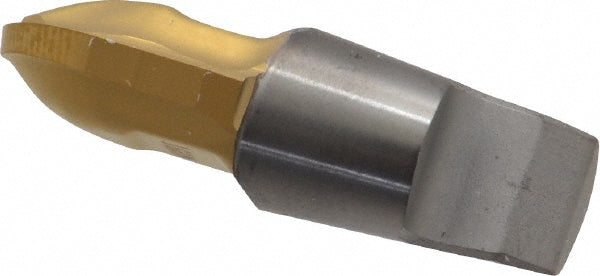

Carbide Insert, Grade T60M, TiAlN - Seco 74052646

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74052646

MFR# 74052646Series MM12

$159.12
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74052646 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerM05
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2500
Cutting width0.5000in
Extension from holder in0.6270
Functional length0.6270
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.500-B90P
Lead angle90
Length of cut0.4800in
Manufacturers catalog number74052646
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.4800
Milling tip full descriptionMM12-0.500-B90P-M05
Milling tip styleMM12
Milling tip typeProfile
Number of flutes2
Overall length0.6270in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
