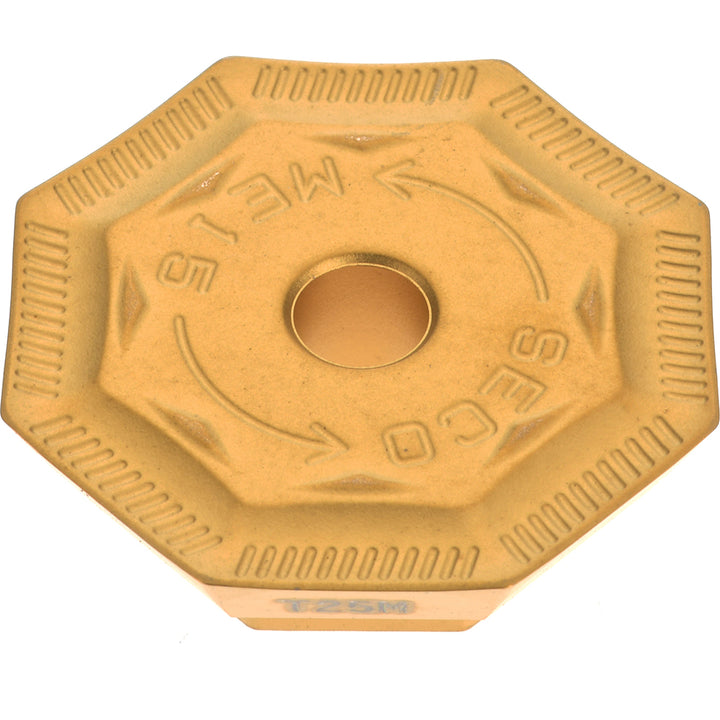

OFER070405TN-ME15 Solid Carbide Insert, Grade T25M, TiCN - Seco 74068305
MFR# 74068305ISO/ANSI# OFER070405TN-ME15Cat# OFER070405TN-ME15Series OFER-07
$34.10List $43.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74068305 is a OFER070405TN-ME15 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeOFER070405TN-ME15
Chip breakerME15
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2921
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7063
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFER
Iso codeOFER070405TN-ME15
Length0.7063
Length range0.7000 to 0.9000
Manufacturers catalog numberOFER070405TN-ME15
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges8
RakePositive
Rake angle16
Relief angle26
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1795
Thickness range0.1750 to 0.1850
Width0.7063
