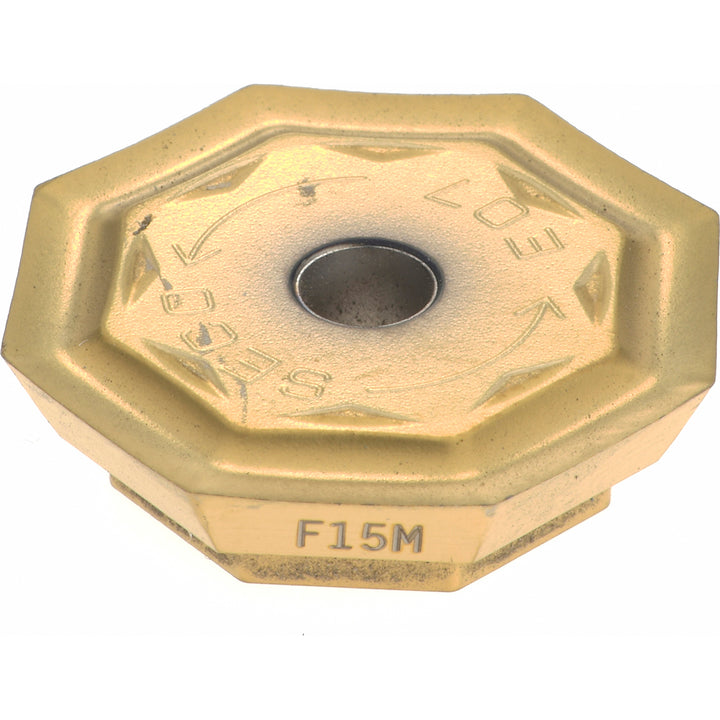

OFER070405N-E07 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74068306

Seco

OFER070405N-E07 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74068306

MFR# 74068306ISO/ANSI# OFER070405N-E07Cat# OFER070405N-E07Series OFER-07

$30.98List $39.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeF15M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 74068306 is a OFER070405N-E07 solid carbide indexable insert, grade F15M, TiAlN coated. Suited for hard material.

Specifications

Ansi codeOFER070405N-E07
Chip breakerE07
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2921
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.7063
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFER
Iso codeOFER070405N-E07
Length0.7063
Length range0.7000 to 0.9000
Manufacturers catalog numberOFER070405N-E07
Manufacturer gradeF15M
Material applicationHard Material
Material gradeFine Grain
Maximum depth of cut0.2756
Multi use toolYes
Number of cutting edges8
Primary workpiece materialHard Material
RakePositive
Rake angle20
Relief angle26
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1795
Thickness range0.1750 to 0.1850
Width0.7063
