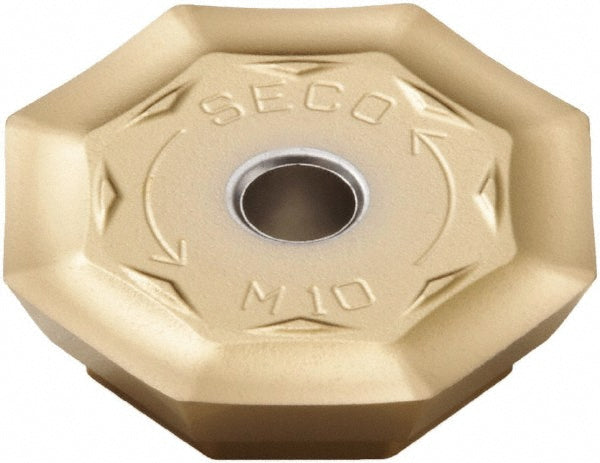

OFER070405N-M10 Solid Carbide Insert, Grade F30M, TiAlN - Seco 74068311
MFR# 74068311ISO/ANSI# OFER070405N-M10Cat# OFER070405N-M10Series OFER-07
$30.98List $39.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeF30M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 74068311 is a OFER070405N-M10 solid carbide indexable insert, grade F30M, TiAlN coated. Suited for universal.
Specifications
Ansi codeOFER070405N-M10
Chip breakerM10
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2921
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.7063
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFER
Iso codeOFER070405N-M10
Length0.7063
Length range0.7000 to 0.9000
Manufacturers catalog numberOFER070405N-M10
Manufacturer gradeF30M
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.2756
Multi use toolYes
Number of cutting edges8
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Relief angle26
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1795
Thickness range0.1750 to 0.1850
Width0.7063
