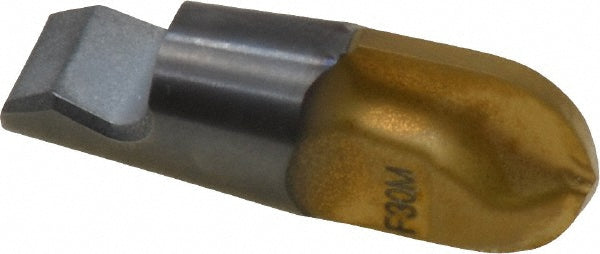

Carbide Insert, Grade F30M, TiAlN - Seco 74068363

Seco

Carbide Insert, Grade F30M, TiAlN - Seco 74068363

MFR# 74068363Series MM12

$122.06
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN

Description

The Seco 74068363 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerMD05
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2360
Cutting diameter0.4720
Cutting width0.4720in
Extension from holder in0.5560
Functional length0.5560
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.472-B90
Lead angle90
Length of cut in31/64in
Manufacturers catalog number74068363
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; K20; K30; H10
Maximum depth of cut (mm)12.3
Milling tip full descriptionMM12-0.472-B90-MD05
Milling tip styleMM12
Milling tip typeProfile
Number of flutes2
Overall length0.5560in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
