Carbide Insert, Grade F30M, TiAlN - Seco 74068812

Seco

Carbide Insert, Grade F30M, TiAlN - Seco 74068812

MFR# 74068812Series MM08

$85.56
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN

Description

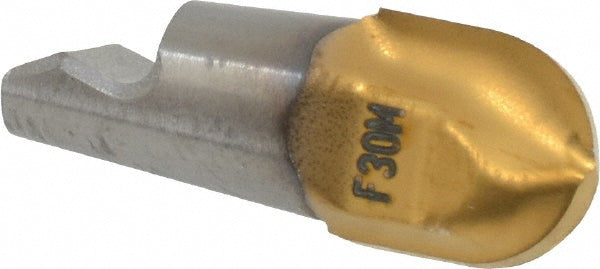

The Seco 74068812 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerMD03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1570
Cutting diameter0.3150
Cutting width0.3150in
Extension from holder in0.3710
Functional length0.3710
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.315-B90
Lead angle90
Length of cut0.3190in
Manufacturers catalog number74068812
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; K20; K30; H10
Maximum depth of cut0.3190
Milling tip full descriptionMM08-0.315-B90-MD03
Milling tip styleMM08
Milling tip typeProfile
Number of flutes2
Overall length0.3710in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
