Seco

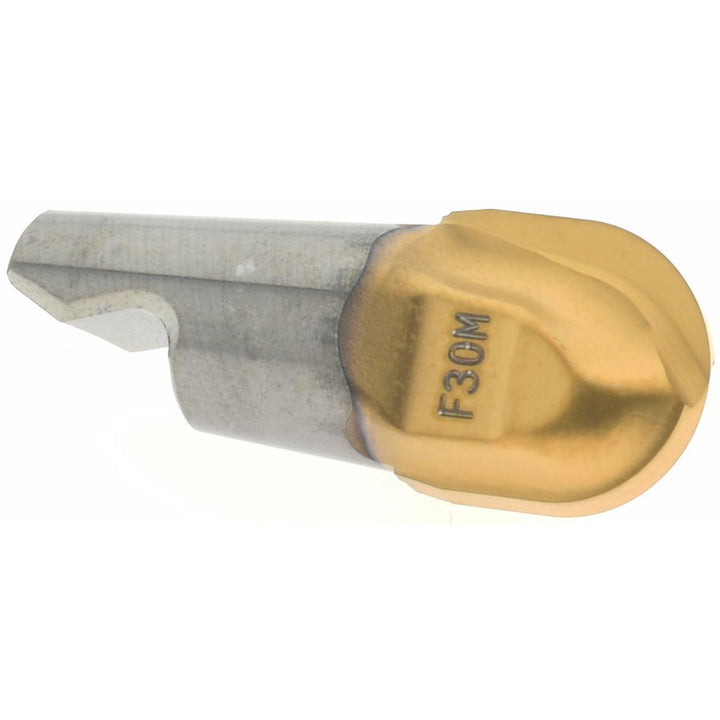

Carbide Insert, Grade F30M, TiAlN - Seco 74068813
MFR# 74068813Series MM08
$112.25
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN
Description
The Seco 74068813 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, hard material.
Specifications
Chamfer angle0
ChipbreakerM03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1570
Cutting diameter0.3150
Cutting width0.315
Extension from holder in0.3700
Functional length0.3700
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.315-B90P
Lead angle90
Length of cut0.2720
Manufacturers catalog number74068813
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; H10
Maximum depth of cut0.2720
Milling tip full descriptionMM08-0.315-B90P-M03
Milling tip styleMM08
Milling tip typeProfile
Number of flutes2
Overall length0.37
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
StandardsANSI
Tool materialCarbide
