Seco

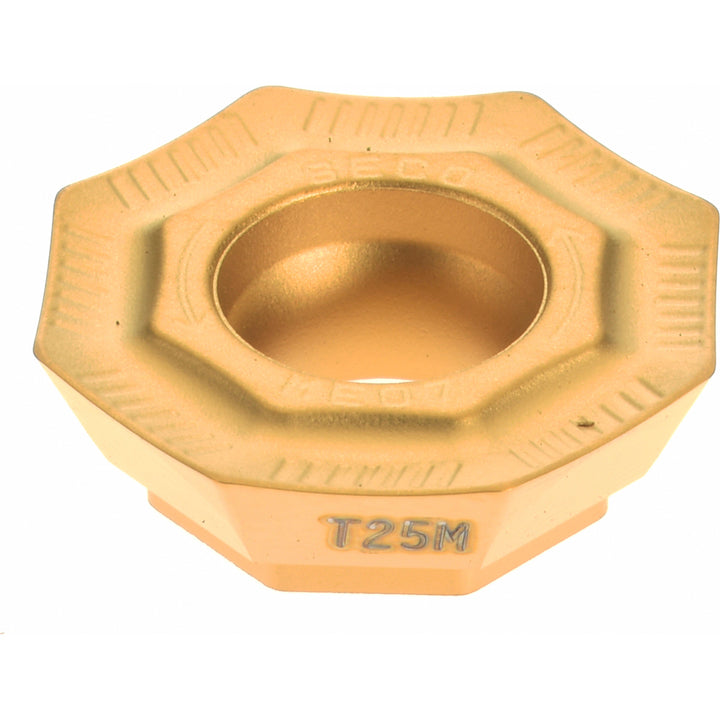

OFEX05T305TN-ME07 Solid Carbide Insert, Grade T25M, TiCN - Seco 74069128
MFR# 74069128ISO/ANSI# OFEX05T305TN-ME07Cat# OFEX05T305TN-ME07Series OFEX-05
$27.29List $35.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeOctagon
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74069128 is a OFEX05T305TN-ME07 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeOFEX05T305TN-ME07
Chip breakerME07
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR217.43-05; R220.43-05
Cutting edge effective length0.2075
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFEX
Iso codeOFEX05T305TN-ME07
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFEX05T305TN-ME07
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.1929
Multi use toolYes
Number of cutting edges8
RakePositive
Rake angle18
Relief angle26
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1484
Thickness range0.1250 to 0.1500
Width in1/2
