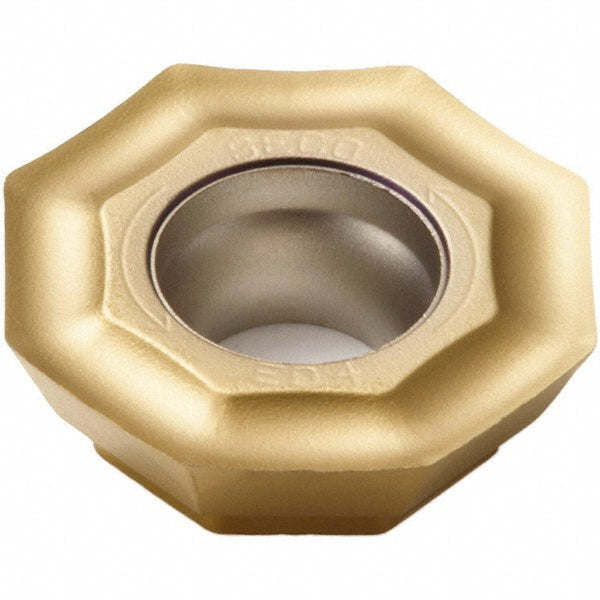

OFEX05T305N-E04 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74069132

Seco

OFEX05T305N-E04 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74069132

MFR# 74069132ISO/ANSI# OFEX05T305N-E04Cat# OFEX05T305N-E04Series OFEX-05

$24.76List $31.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeOctagon
GradeF15M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 74069132 is a OFEX05T305N-E04 solid carbide indexable insert, grade F15M, TiAlN coated. Suited for hard material.

Specifications

Ansi codeOFEX05T305N-E04
Chip breakerE04
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR217.43-05; R220.43-05
Cutting edge effective length0.2075
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFEX
Iso codeOFEX05T305N-E04
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFEX05T305N-E04
Manufacturer gradeF15M
Material applicationHard Material
Material gradeFine Grain
Maximum depth of cut0.1929
Multi use toolYes
Number of cutting edges8
Primary workpiece materialHard Material
RakePositive
Rake angle20
Relief angle26
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1484
Thickness range0.1250 to 0.1500
Width in1/2
