Seco

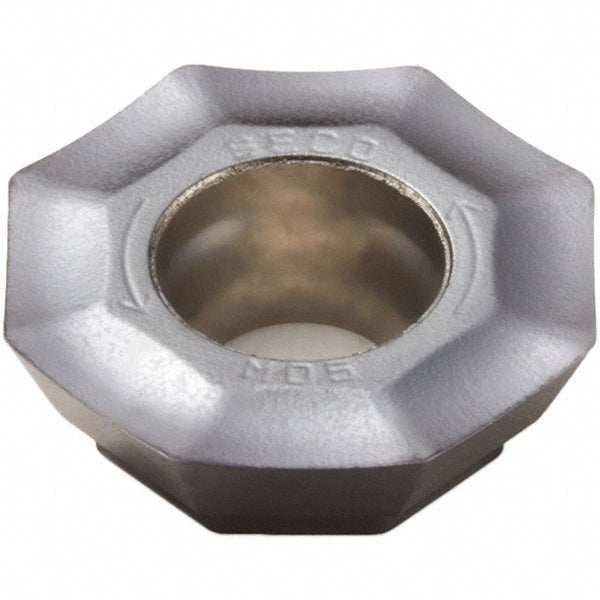

OFEX05T305N-M05 Solid Carbide Insert, Grade F30M, TiAlN - Seco 74069133
MFR# 74069133ISO/ANSI# OFEX05T305N-M05Cat# OFEX05T305N-M05Series OFEX-05
$24.76List $31.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeOctagon
GradeF30M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 74069133 is a OFEX05T305N-M05 solid carbide indexable insert, grade F30M, TiAlN coated. Suited for universal.
Specifications
Ansi codeOFEX05T305N-M05
Chip breakerM05
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR217.43-05; R220.43-05
Cutting edge effective length0.2075
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFEX
Iso codeOFEX05T305N-M05
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFEX05T305N-M05
Manufacturer gradeF30M
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.1929
Multi use toolYes
Number of cutting edges8
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Relief angle26.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1484
Thickness range0.1250 to 0.1500
Width in1/2
