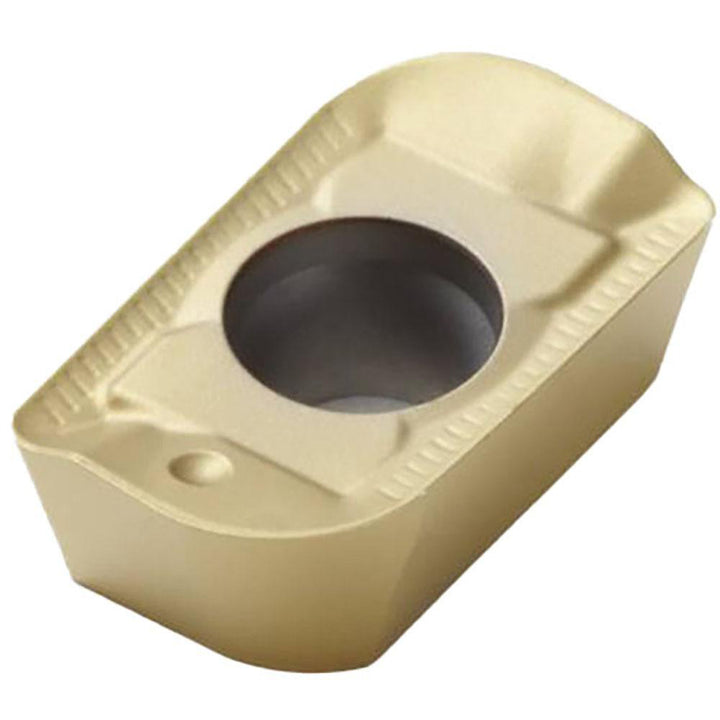

APKX160416R-ME12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 74069375

Seco

APKX160416R-ME12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 74069375

MFR# 74069375ISO/ANSI# APKX160416R-ME12Cat# APKX160416R-ME12.055Series APKX-16

$31.92List $40.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 74069375 is a APKX160416R-ME12 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi codeAPKX160416R-ME12.055
Chip breakerME12
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6598
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle0.3717
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160416
Insert styleAPKX
Iso codeAPKX160416R-ME12
Length0.6598
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKX160416R-ME12.055
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle24
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2232
Thickness range0.2200 to 0.2350
Width0.3717
