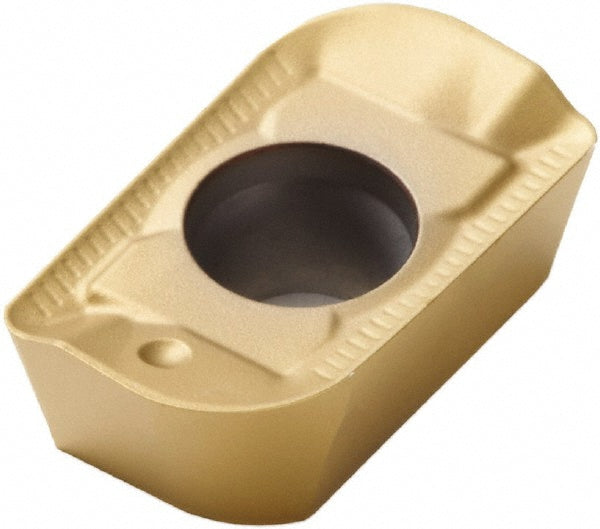

APKX1604PDR-ME12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 74069376

Seco

APKX1604PDR-ME12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 74069376

MFR# 74069376ISO/ANSI# APKX1604PDR-ME12Cat# APKX1604PDR-ME12.034Series APKX-16

$31.92List $40.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 74069376 is a APKX1604PDR-ME12 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi codeAPKX1604PDR-ME12.034
Chip breakerME12
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6598
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKX
Iso codeAPKX1604PDR-ME12
Length0.6598
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKX1604PDR-ME12.034
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle24
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2232
Thickness range0.2200 to 0.2350
Width in3/8
