Seco

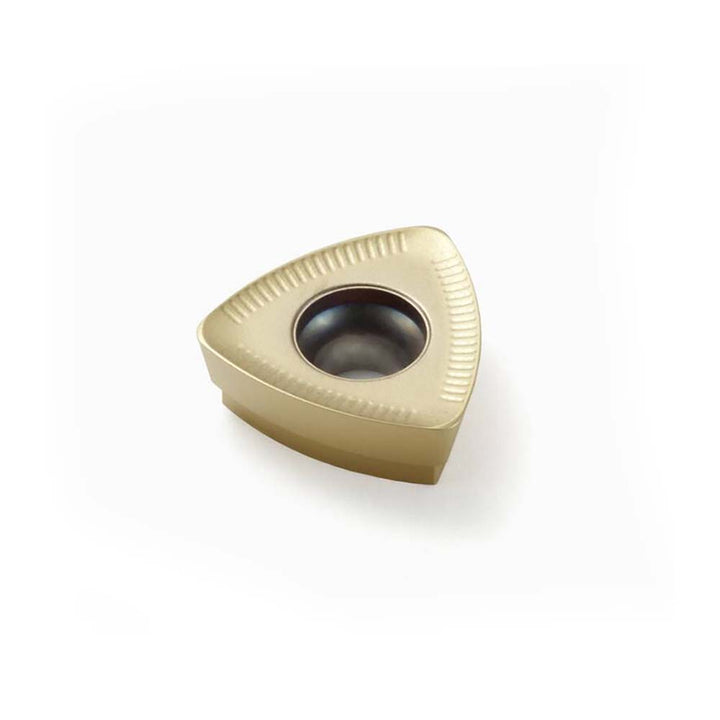

218.19-250T-06-ME12 Solid Carbide Insert, Grade T25M, TiCN - Seco 74069559
MFR# 74069559ISO/ANSI# 218.19-250T-06-ME12Cat# 218.19-250T-06-ME12Series 218.19-250
$47.31List $59.62
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74069559 is a 218.19-250T-06-ME12 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi code218.19-250T-06-ME12
Chip breakerME12
Coating finishTiCN
Coating processCVD
Convex radius0.9843
Corner radius in3/64
Cutting edge styleT-Land
Hole diameter0.2598
Included angle degree60
Inscribed circle0.6512
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size250
Insert size code250T-06
Insert style218.19
Iso code218.19-250T-06-ME12
Length0.6512
Length range0.6500 to 0.7000
Manufacturers catalog number218.19-250T-06-ME12
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Multi use toolYes
Number of cutting edges3
RakePositive
Rake angle20
Relief angle12.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.6512
