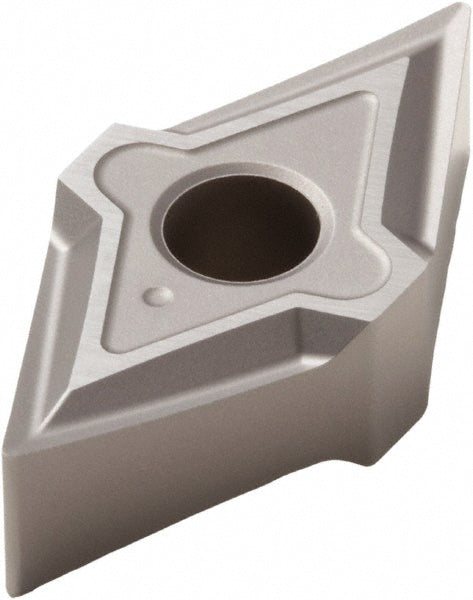

DNMG150404-MF1 Carbide Insert, Grade 890 - Seco 74069656

Seco

DNMG150404-MF1 Carbide Insert, Grade 890 - Seco 74069656

MFR# 74069656ISO/ANSI# DNMP431-MF1Series DNMP-MF1

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
Grade890
MaterialCarbide

Description

The Seco 74069656 is a DNMG150404-MF1 carbide indexable insert, grade 890. Suited for superalloys & titanium.

Specifications

Chip breakerMF1
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMP431-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMP
Insert thickness in3/16
Iso codeDNMG150404-MF1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number74069656
Manufacturer grade890
Material gradeS10; S20
Maximum depth of cut0.5945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
