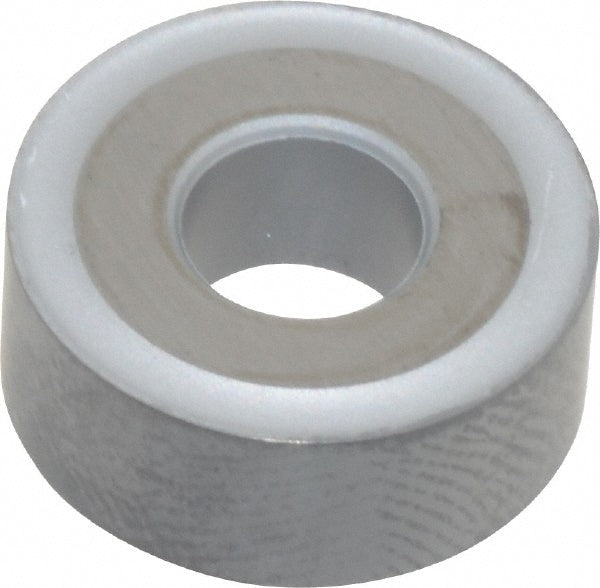

RNMG120400-MR4 Carbide Insert, Grade 883 - Seco 74070273

Seco

RNMG120400-MR4 Carbide Insert, Grade 883 - Seco 74070273

MFR# 74070273ISO/ANSI# RNMG43-MR4Series RNMG-MR4

$14.66List $18.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
Grade883
MaterialCarbide

Description

The Seco 74070273 is a RNMG120400-MR4 carbide indexable insert, grade 883. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleT-Land
Full radiusYes
Hole diameter0.2028
Included angle360degree
Industry standard numberRNMG43-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRNMG
Insert thickness in3/16
Iso codeRNMG120400-MR4
Lead angle360degree
Length range0.5000 - 0.6000
Manufacturers catalog number74070273
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.2500
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
