Seco

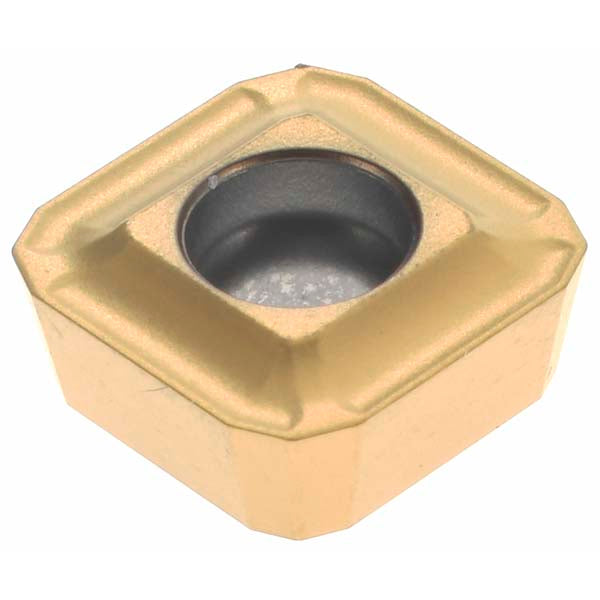

0.3126" IC Carbide Insert, Grade T400D, TiAlN - Seco 74077372
MFR# 74077372Series Perfomax
$22.14List $28.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT400D
MaterialCarbide
CoatingTiAlN
Description
The Seco 74077372 is a carbide indexable insert, grade T400D, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC1
Coating finishTiAlN
Coating processPVD
Included angle degree90
Inscribed circle0.3126
Insert materialCarbide
Insert size0703
Insert size code07
Insert styleSPGX
Length0.313
Manufacturer gradeT400D
Material gradeC1
Primary workpiece materialUniversal
Relief angle11
ShapeSquare
Thickness0.125
Width0.313
