Seco

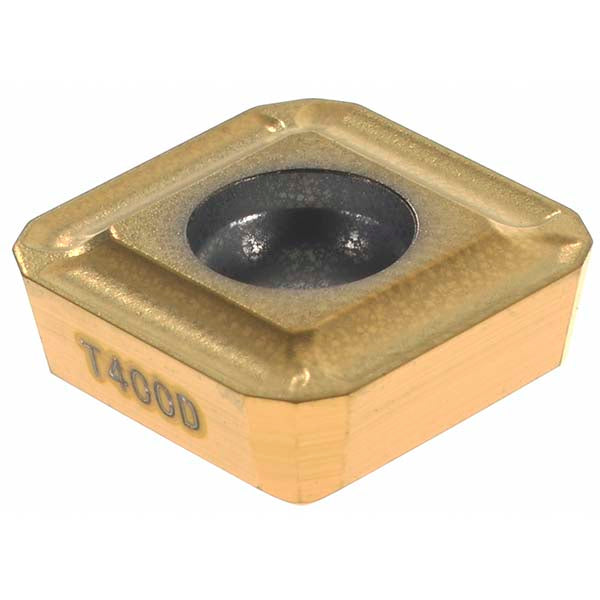

0.5000" IC Carbide Insert, Grade T400D, TiAlN - Seco 74077375
MFR# 74077375Series Perfomax
$28.63List $36.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT400D
MaterialCarbide
CoatingTiAlN
Description
The Seco 74077375 is a carbide indexable insert, grade T400D, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC1
Coating finishTiAlN
Coating processPVD
Included angle degree90
Inscribed circle0.5000
Insert materialCarbide
Insert size12T3
Insert size code12
Insert styleSPGX
Length0.5
Manufacturer gradeT400D
Material gradeC1
Primary workpiece materialUniversal
Relief angle11
ShapeSquare
Thickness0.156
Width0.5
