Seco
0.6252" IC Carbide Insert, Grade T400D, TiAlN - Seco 74077376
MFR# 74077376Series Perfomax
$31.58List $40.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT400D
MaterialCarbide
CoatingTiAlN
Description

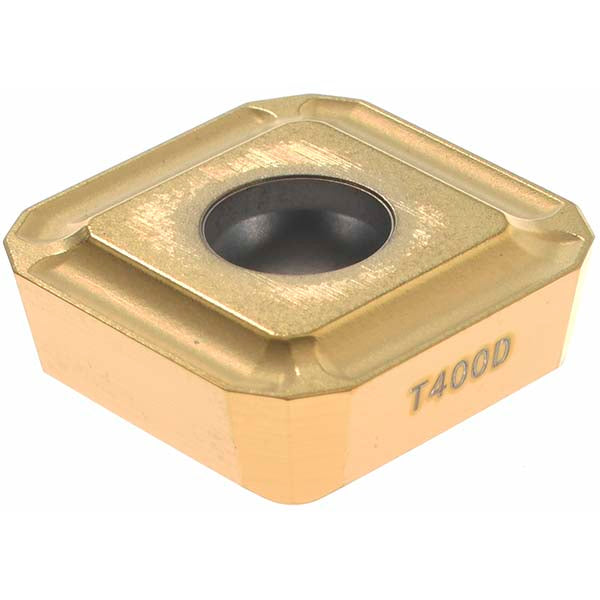

The Seco 74077376 is a carbide indexable insert, grade T400D, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC1
Coating finishTiAlN
Coating processPVD
Included angle degree90
Inscribed circle0.6252
Insert materialCarbide
Insert size1504
Insert size code15
Insert styleSPGX
Length0.625
Manufacturer gradeT400D
Material gradeC1
Primary workpiece materialUniversal
Relief angle11
ShapeSquare
Thickness0.187
Width0.625
