Seco

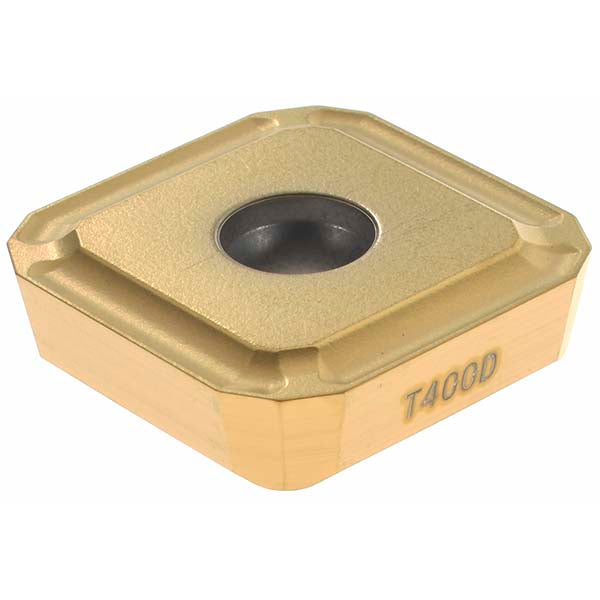

0.7500" IC Carbide Insert, Grade T400D, TiAlN - Seco 74077377
MFR# 74077377Series Perfomax
$36.65List $47.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT400D
MaterialCarbide
CoatingTiAlN
Description
The Seco 74077377 is a carbide indexable insert, grade T400D, TiAlN coated. Suited for universal.
Specifications
ChipbreakerC1
Coating finishTiAlN
Coating processPVD
Included angle degree90
Inscribed circle0.7500
Insert materialCarbide
Insert size1904
Insert size code19
Insert styleSPGX
Length0.75
Manufacturer gradeT400D
Material gradeC1
Primary workpiece materialUniversal
Relief angle11
ShapeSquare
Thickness0.187
Width0.75
