Seco

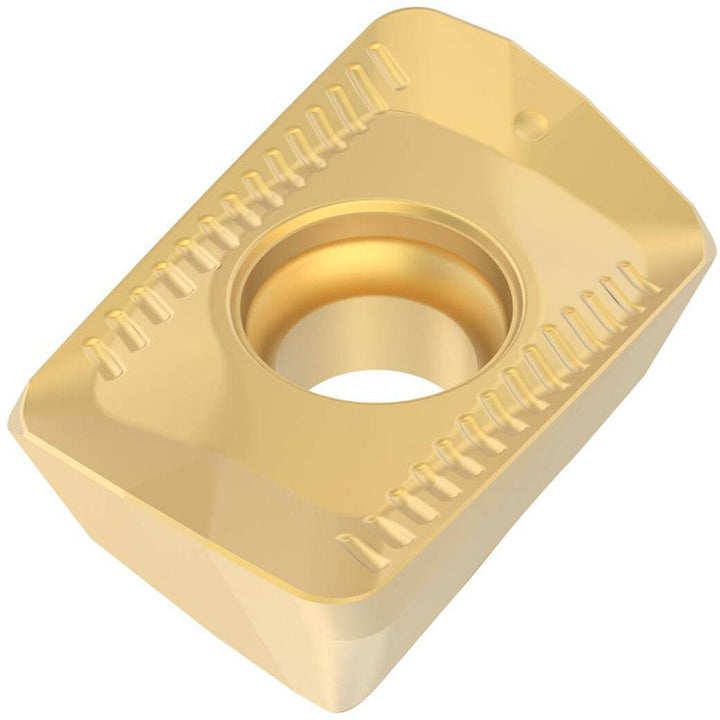

XOMX090331TR-ME06 Solid Carbide Insert, Grade F40M, TiAlN - Seco 74077627
MFR# 74077627ISO/ANSI# XOMX090331TR-ME06Cat# XOMX090331TR-ME06Series XOMX-09
$28.53List $35.96
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 74077627 is a XOMX090331TR-ME06 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXOMX090331TR-ME06
Chip breakerME06
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityR217; 69-09; R220.69-09
Cutting edge effective length0.3543
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090331
Insert styleXOMX
Iso codeXOMX090331TR-ME06
Length0.3543
Length range0.3200 to 0.4000
Manufacturers catalog numberXOMX090331TR-ME06
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3543
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle22.5
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1264
Thickness range0.1250 to 0.1500
Width in1/4
