Seco

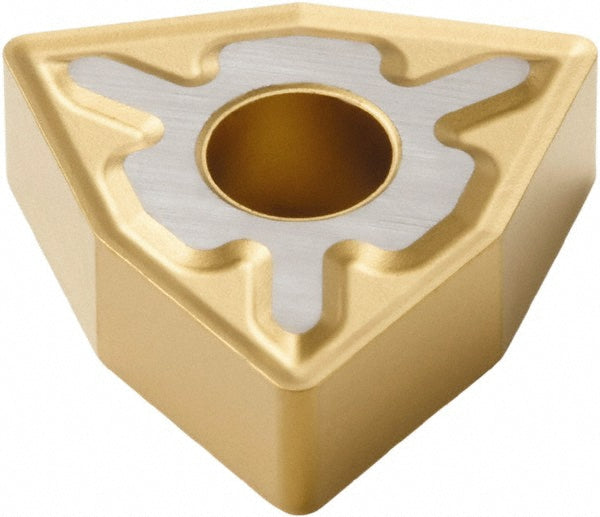

WNMG080404-MF3 Carbide Insert, Grade TP40, TiC - Seco 74078309
MFR# 74078309ISO/ANSI# WNMG431-MF3Series WNMG-MF3
$20.14List $25.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74078309 is a WNMG080404-MF3 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerMF3
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG431-MF3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404-MF3
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number74078309
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.3346
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
