Seco

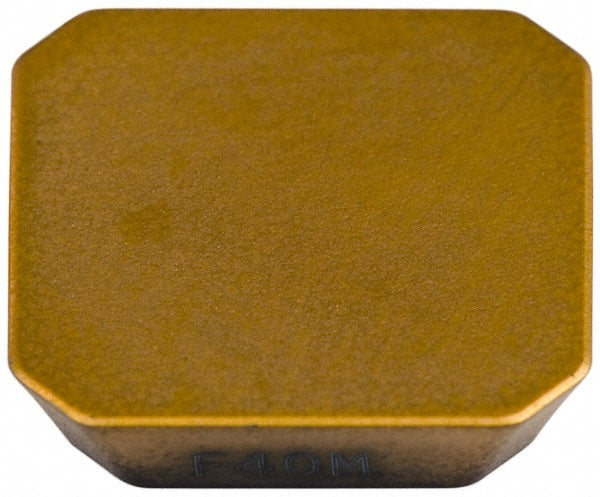

SEKN1203AFTN-M14 Solid Carbide Insert, Grade F40M, TiAlN - Seco 74078899
MFR# 74078899ISO/ANSI# SEKN1203AFTN-M14Cat# SEKN1203AFTN-M14Series SEKN-12
$22.32List $28.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 74078899 is a SEKN1203AFTN-M14 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSEKN1203AFTN-M14
Chip breakerM14
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR220.13-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1203
Insert styleSEKN
Iso codeSEKN1203AFTN-M14
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKN1203AFTN-M14
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3465
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle20
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
