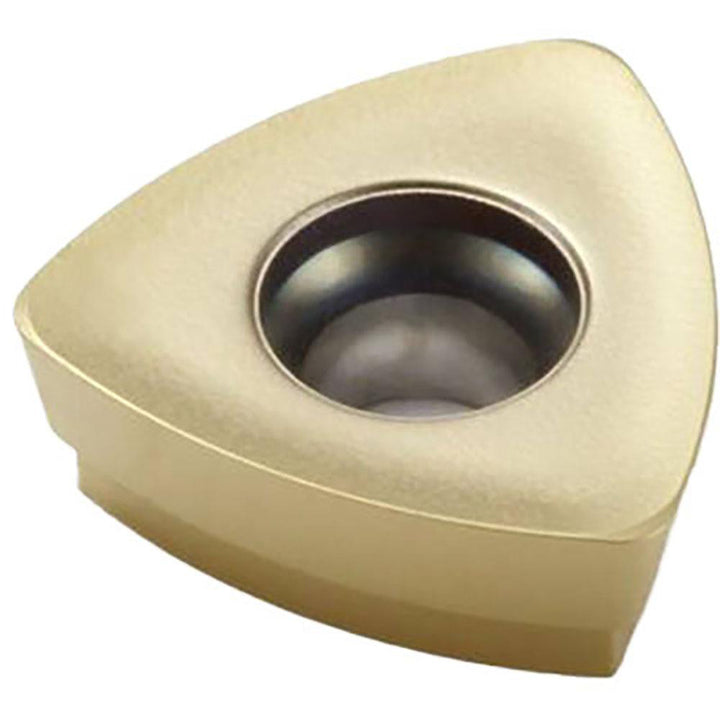

218.19-100T-M06 Solid Carbide Insert, Grade F30M, TiAlN - Seco 74079714
MFR# 74079714ISO/ANSI# 218.19-100T-M06Cat# 218.19-100T-M06Series 218.19-100
$24.34List $31.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeF30M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 74079714 is a 218.19-100T-M06 solid carbide indexable insert, grade F30M, TiAlN coated. Suited for universal.
Specifications
Ansi code218.19-100T-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Convex radius0.3937
Corner radius in1/32
Cutter series compatibilityR218.19-20; R217.21-R100
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree60
Inscribed circle0.2780
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size100
Insert size code100T
Insert style218.19
Iso code218.19-100T-M06
Length0.2780
Length range0.0000 to 0.3200
Manufacturers catalog number218.19-100T-M06
Manufacturer gradeF30M
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.0290
Multi use toolYes
Number of cutting edges3
Primary workpiece materialUniversal
RakePositive
Rake angle7
Relief angle12
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in7/64
Thickness range0.1000 to 0.1250
Width0.2780
