Seco

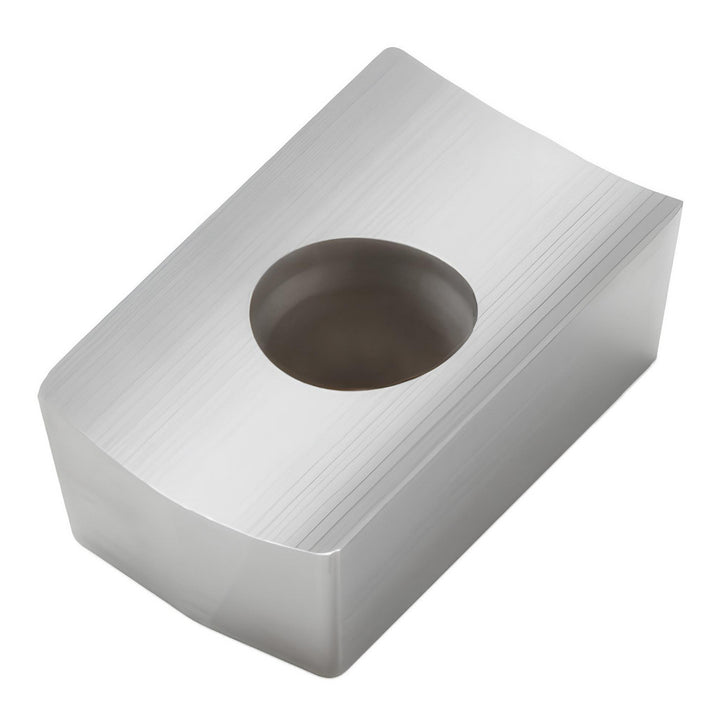

XCEX13T304FR-E06 Solid Carbide Insert, Grade HX - Seco 74095065
MFR# 74095065ISO/ANSI# XCEX13T304FR-E06Cat# XCEX13T304FR-E06Series XCEX-13
$40.67List $52.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeHX
MaterialSolid Carbide
Description
The Seco 74095065 is a XCEX13T304FR-E06 solid carbide indexable insert, grade HX. Suited for non-ferrous metal.
Specifications
Ansi codeXCEX13T304FR-E06
Chip breakerE06
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityR215.59-08
Cutting edge effective length0.5236
Cutting edge styleSharp
Hole diameter0.1378
Included angle degree80
Inscribed circle0.5303
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size13
Insert size code13T304
Insert styleXCEX
Iso codeXCEX13T304FR-E06
Length0.5236
Length range0.5000 to 0.6000
Manufacturers catalog numberXCEX13T304FR-E06
Manufacturer gradeHX
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.5236
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1681
Thickness range0.1500 to 0.1750
Width0.5303
