Seco

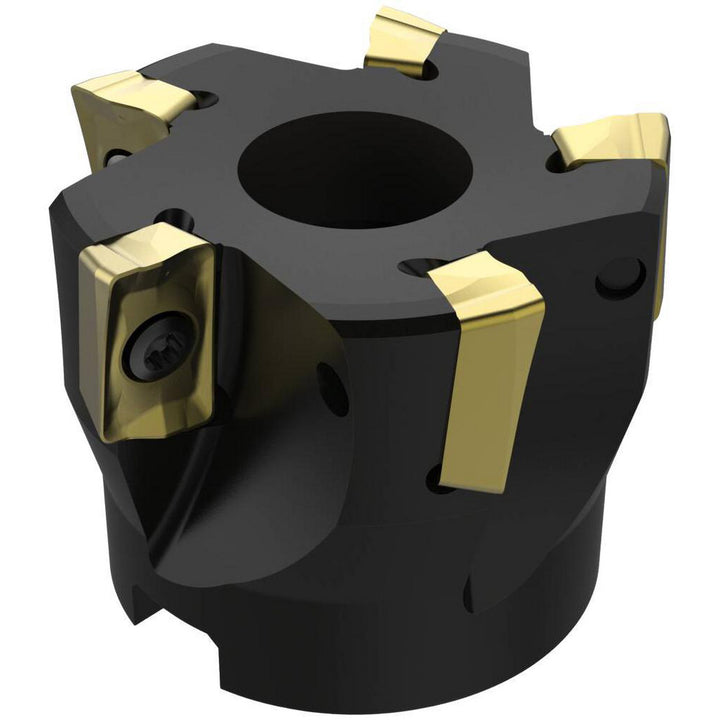

Indexable Milling Cutters - Seco 75503405
MFR# 75503405Series R220.69
$965.26List $1,007.64
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 75503405 indexable milling cutters. Series R220.69.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeAP 1604
Coolant throughNo
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)47.00
Insert holding methodClamp; Screw
Keyway width0.3200
Lead angle0/90
Maximum cutting diameter in2
Maximum depth of cut0.5900
Maximum ramping angle1.00
Number of cutter inserts5
Number of flutes5
Overall height1.5700
Pitch typeMedium
RakePositive (Axial); Negative (Radial)
StandardsISO
Tool applicationHelical Interpolation; Ramping; Slotting
