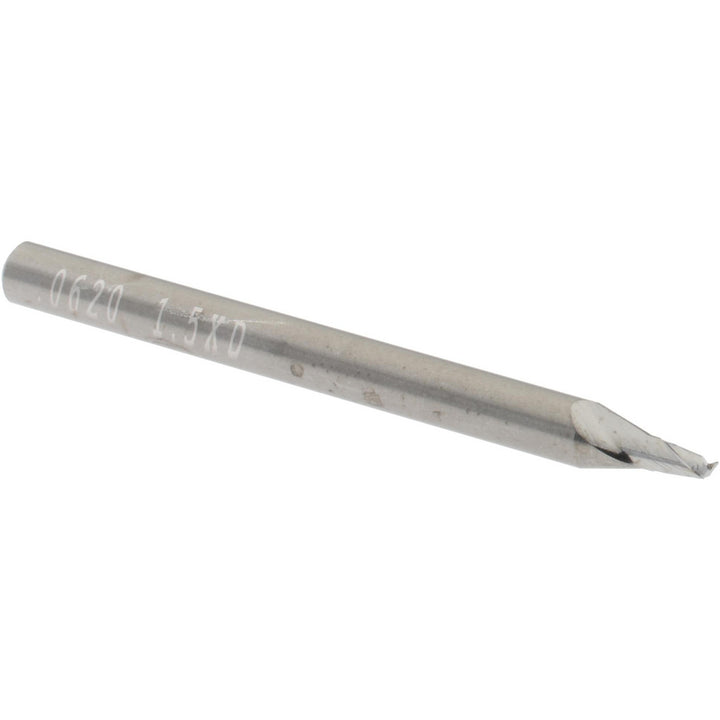

1/16" 2-Flute Solid Carbide Square End Mill - SGS 00357

SGS

1/16" 2-Flute Solid Carbide Square End Mill - SGS 00357

MFR# 00357Series M2S

$13.57List $17.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes2
MaterialSolid Carbide

Description

The SGS 00357 is a 1/16 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 3/32 length of cut, 1-1/2 overall length. Series M2S.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/32
Length of cut range0.0000 - 0.1000
Length typeStub
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes2
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter in1/8
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
