SGS

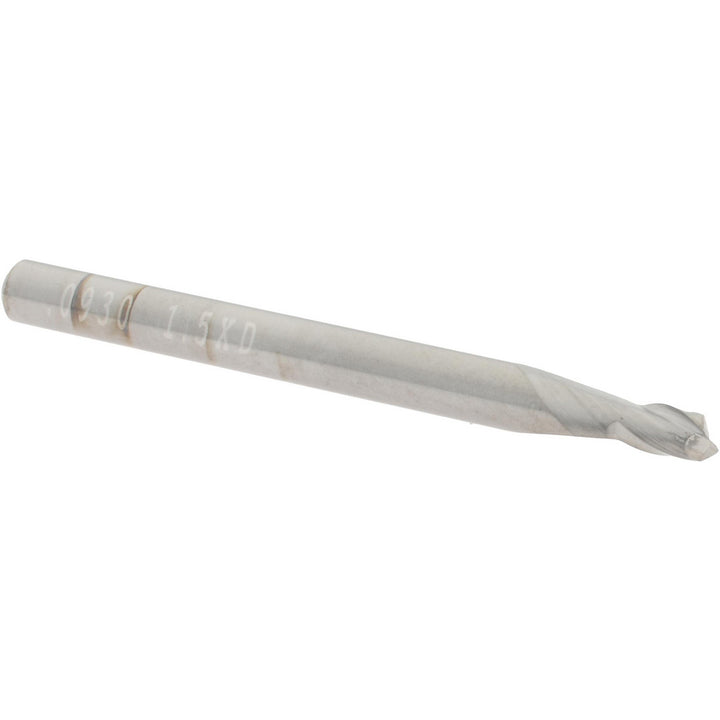

3/32" 2-Flute Solid Carbide Square End Mill - SGS 00364
MFR# 00364Series M2S
$13.57List $17.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/32
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 00364 is a 3/32 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 9/64 length of cut, 1-1/2 overall length. Series M2S.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/64
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes2
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter in1/8
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
