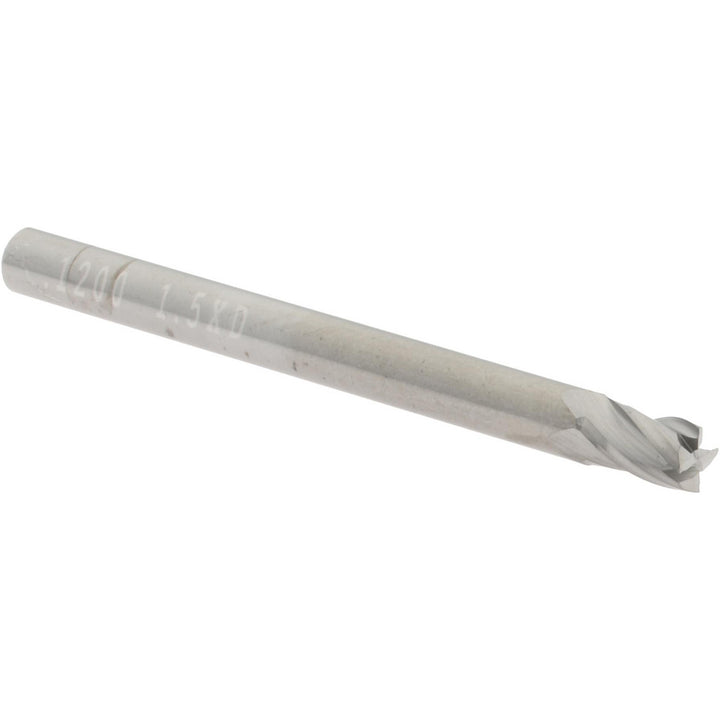

0.1200" 4-Flute Solid Carbide Square End Mill - SGS 00441

SGS

0.1200" 4-Flute Solid Carbide Square End Mill - SGS 00441

MFR# 00441Series 1820

$13.91List $17.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The SGS 00441 is a 0.1200 4-flute Solid Carbide (Micrograin) square end mill. 0.1875 length of cut, 1-1/2 overall length. Series 1820.

Specifications

CentercuttingYes
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut0.1875
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter0.1200
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Titan USA0.1200" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC58320 $21.45 Harvey Tool0.1200" 4-Flute Solid Carbide Square End Mill - Harvey Tool 73120 $20.83 SGS0.1200" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 03507 $42.24 Harvey Tool0.1200" 4-Flute Solid Carbide Square End Mill - Harvey Tool 73120-C4 $39.01
