SGS
1/16" 2-Flute Solid Carbide Square End Mill - SGS 00498
MFR# 00498Series 1610
$15.63List $20.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes2
MaterialSolid Carbide
Description

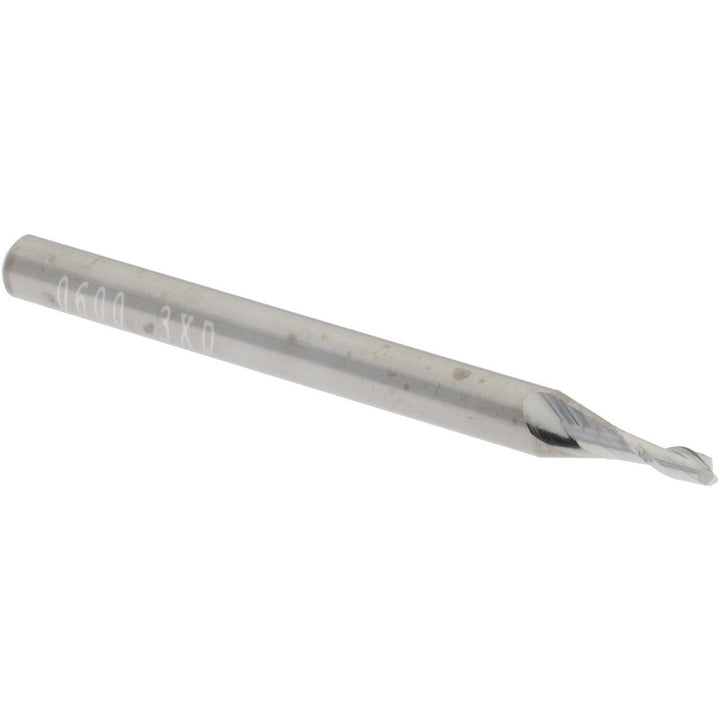

The SGS 00498 is a 1/16 2-flute Solid Carbide (Micrograin) square end mill. 0.1800 length of cut, 1-1/2 overall length. Series 1610.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1800
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
