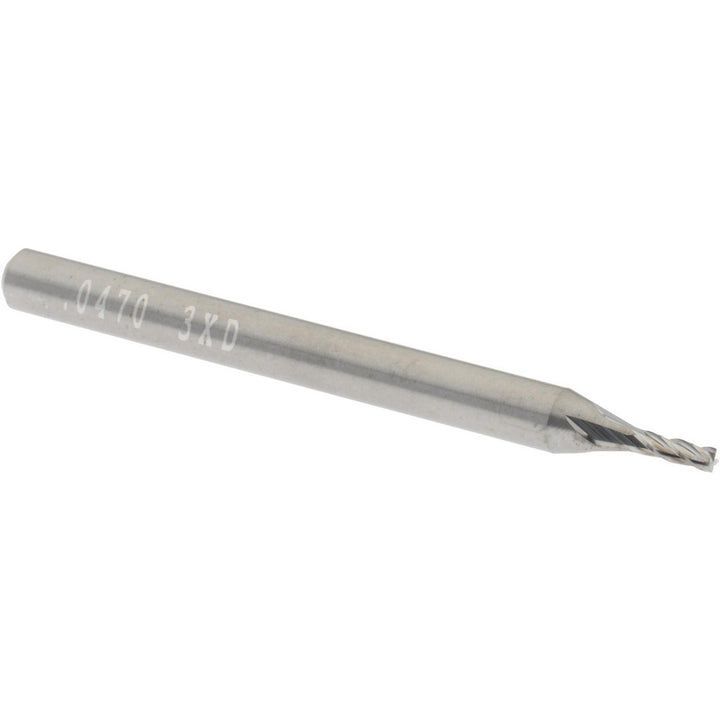

3/64" 4-Flute Solid Carbide Square End Mill - SGS 00556

SGS

3/64" 4-Flute Solid Carbide Square End Mill - SGS 00556

MFR# 00556Series 1810

$14.51List $18.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes4
MaterialSolid Carbide

Description

The SGS 00556 is a 3/64 4-flute Solid Carbide (Micrograin) square end mill. 9/64 length of cut, 1-1/2 overall length. Series 1810.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in9/64
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/64
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG3/64" 4-Flute Solid Carbide Square End Mill - OSG 404-0469 $12.94 Hertel3/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750386 $15.92 Hertel3/64" 4-Flute Solid Carbide Square End Mill, TiN - Hertel 750495 $14.90 OSG3/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP441-0469 $20.74
