0.0650" 4-Flute Solid Carbide Square End Mill - SGS 00571

SGS

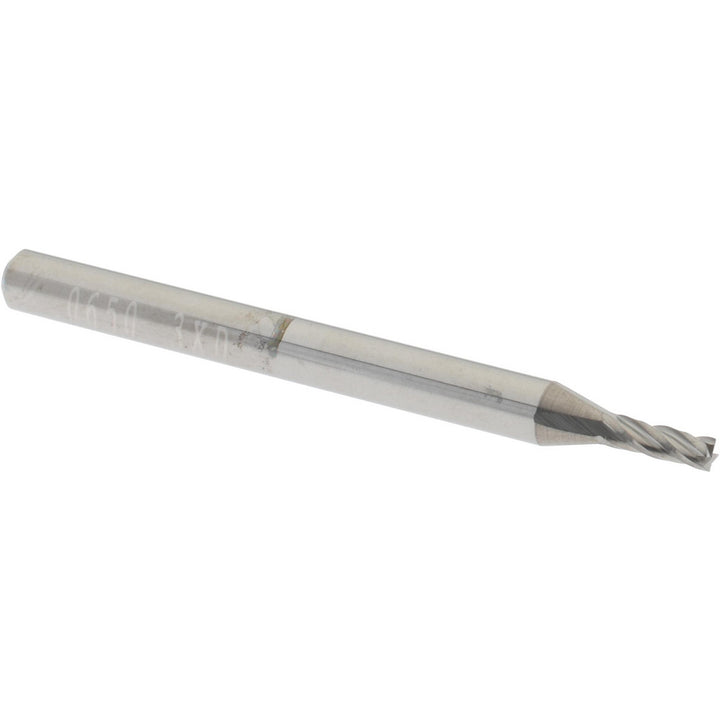

0.0650" 4-Flute Solid Carbide Square End Mill - SGS 00571

MFR# 00571Series 1810

$15.63List $20.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The SGS 00571 is a 0.0650 4-flute Solid Carbide (Micrograin) square end mill. 0.1950 length of cut, 1-1/2 overall length. Series 1810.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1950
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter0.0650
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Harvey Tool0.0650" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 73065-C3 $28.36 M.A. Ford.0.0650" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11106500 $20.71 Harvey Tool0.0650" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 14065-C3 $28.36 SGS0.0650" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 02654 $29.19
