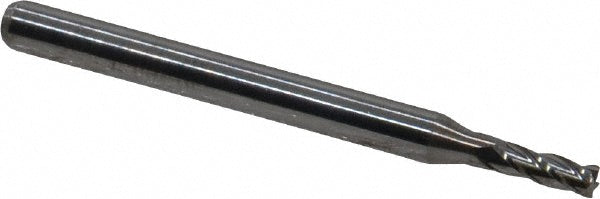

5/64" 4-Flute Solid Carbide Square End Mill - SGS 00574
MFR# 00574Series 1810
$15.24List $19.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/64
Flutes4
MaterialSolid Carbide
Description
The SGS 00574 is a 5/64 4-flute Solid Carbide (Micrograin) square end mill. 0.2400 length of cut, 1-1/2 overall length. Series 1810.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.2400
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/64
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
