SGS

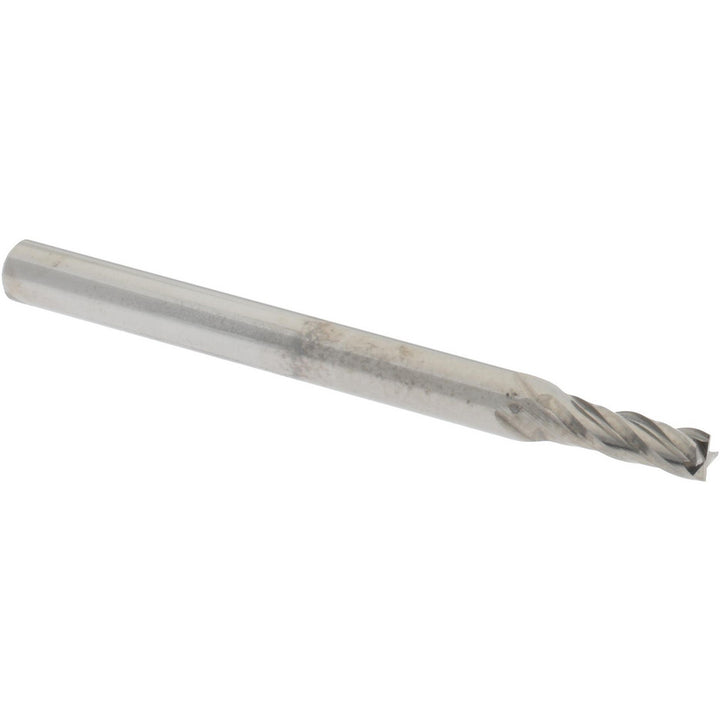

3/32" 4-Flute Solid Carbide Square End Mill - SGS 00577
MFR# 00577Series 1810
$12.69List $16.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
Description
The SGS 00577 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill. 9/32 length of cut, 1-1/2 overall length. Series 1810.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in9/32
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
