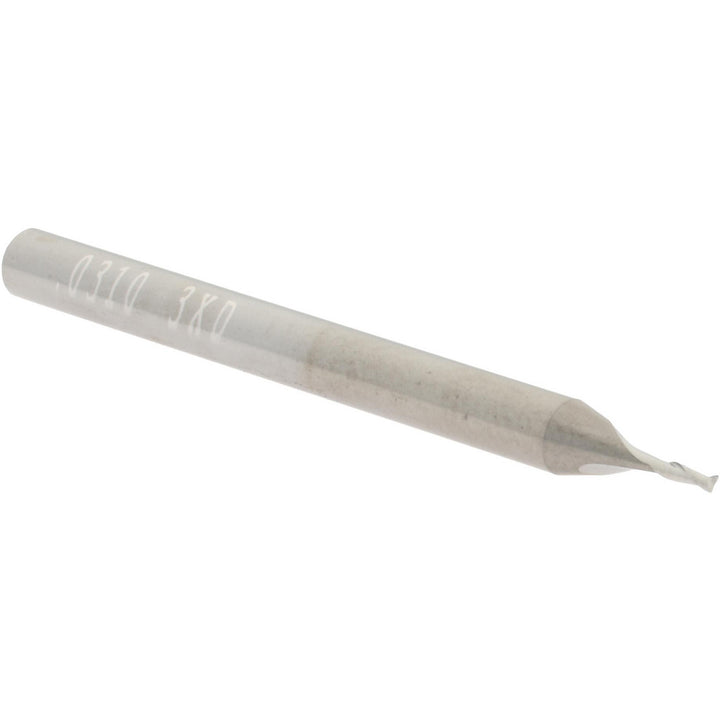

1/32" 2-Flute Solid Carbide Square End Mill - SGS 00837
MFR# 00837Series 1610
$20.48List $26.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/32
Flutes2
MaterialSolid Carbide
Description
The SGS 00837 is a 1/32 2-flute Solid Carbide (Micrograin) square end mill. 3/32 length of cut, 1-1/2 overall length. Series 1610.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/32
Length of cut range0.0000 - 0.1000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/32
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
