3/32" 2-Flute Solid Carbide Square End Mill - SGS 01845

SGS

3/32" 2-Flute Solid Carbide Square End Mill - SGS 01845

MFR# 01845Series 1610

$13.57List $17.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes2
MaterialSolid Carbide

Description

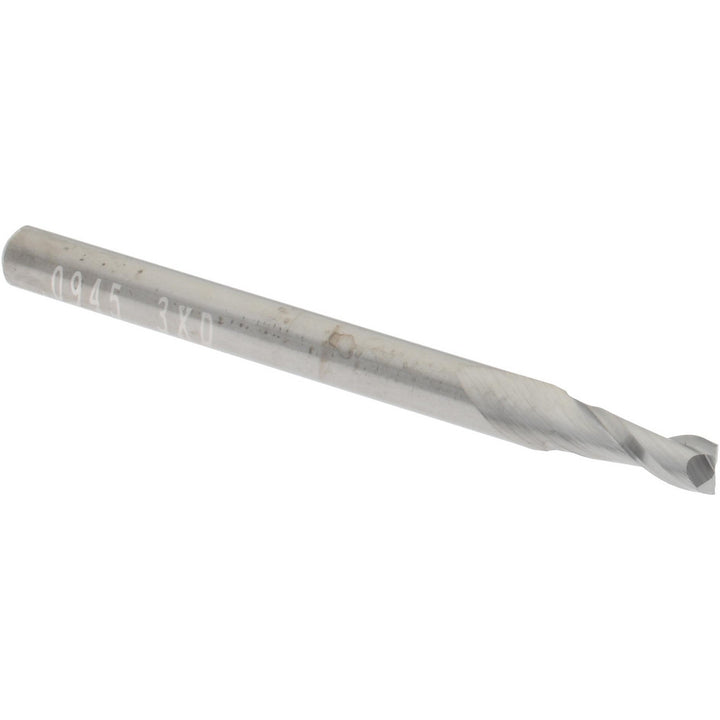

The SGS 01845 is a 3/32 2-flute Solid Carbide (Micrograin) square end mill. 9/32 length of cut, 1-1/2 overall length. Series 1610.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in9/32
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS3/32" 2-Flute Solid Carbide Square End Mill, TiCN - SGS 39511 $16.35 OSG3/32" 2-Flute Cobalt Square End Mill - OSG 5647400 $42.14 Hertel3/32" 2-Flute Solid Carbide Square End Mill - Hertel E599924304 $15.63 SGS3/32" 2-Flute Solid Carbide Square End Mill, TiN - SGS 39311 $16.35
