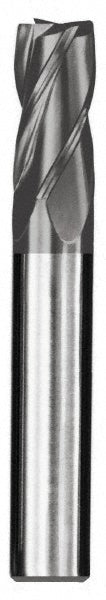

27/64" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30017

SGS

27/64" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30017

MFR# SGS-30017Series 1

$52.48List $67.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter27/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 30017 is a 27/64 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1 length of cut, 2-3/4 overall length. Series 1.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in27/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
