SGS

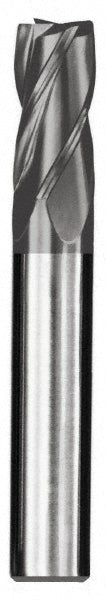

11/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30025
MFR# 30025Series 1
$266.33List $335.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter11/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 30025 is a 11/16 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1-3/8 length of cut, 4 overall length. Series 1.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/8
Length typeRegular
Material gradeMicrograin
Mill diameter in11/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in4
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
